Product Description

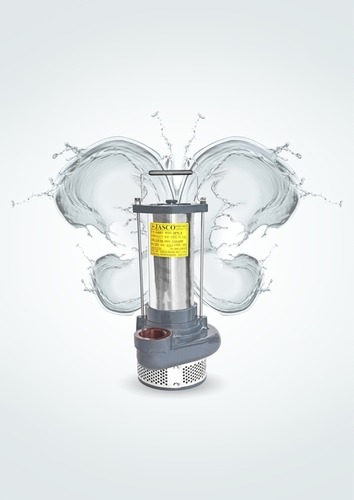

Industrial Portable Submersible Pump: Jasco Pump Pvt. Ltd. is an ISO 9001:2000 certified company that manufactures and exports quality Industrial Portable Submersible Pump making use of quality raw material. The pump is light in weight, performs well, requires minimal maintenance and has durable finish standards.
Other Details: The Industrial Portable Submersible Pump is technically advanced pump that can be used for handling wastewater at construction site, trenches, ditches, kitchen waste, etc. The material utilized in the production of this submersible pump are cast iron, mild steel, stainless steel, nitrile rubber, and others.
Key Features
- Robust motor body
- Quality lower and upper ball bearing
- SS stator stamping and impellers
- Nitrile rubber O-Ring
Application
- Cleaning of manhole
- Construction site and basement
- Handling industrial wastewater
- Kitchen waste in Hotels
- Drainage of reservoirs, ditches and trenches
| Qty | Name of Parts | Material |
| 1 | Handle | S.S. 410 |
| 4 | Stud Lock Nut | S.S. 410 |
| 1 | Top Cover | C.I. I.S.210 Fg200 |
| 2 | Stud | S.S. 410 |
| 1 | Upper Ball Bearing | - |
| 1 | Motor Body | S.S. 304 |
| 1 SET | Stator Stamping | SI Steel |
| 1 SET | Rotor Die Cast | SI Steel + Allu |
| 1 | Oil Chamber | C.I. I.S. 210 Fg200 |
| 1 | Volute | C.I. I.S. 210 Fg200 |
| 1 | Impeller | S.S. 410 |
| 1 | Impeller Lock Nut | S.S. 410 |
| 1 | Cable | Copper + P.V.C. |
| 1 | Cable Screw | P.V.C. |
| 3 | 'O' Ring | Nitrile Rubber |
| - | Winding Coil | C.I. I.S. 210 Fg200 |
| 1 | Lower Ball Bearing | - |
| 1 Set | Mechanical Seal | - |
| 1 | Spiral Plate | C.I. I.S, 210 Fg200 |
| 1 | Strainer | S.S. |
| 1 | Bottom Plate | M.S. |
Technical Specification
| Head | Up to 35m |
| Capacity | Up to 150 m3/Hr |
| Hp | Up to 2 Hp (SP) Up to 7.5 Hp (TP) |
| Solid Size | Up to 50 mm |
| Speed | 1450/2900 rpm |
