Industrial Submersible Pump

Product Description

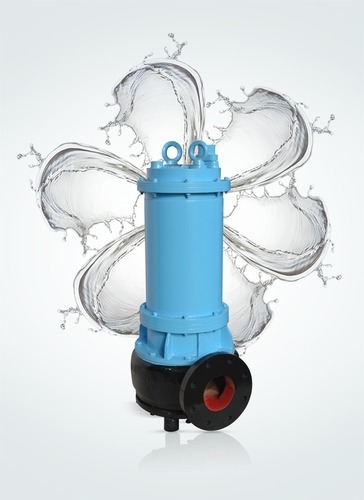

Industrial Submersible Pump

Our company manufactures this industrial submersible pump utilizing sophisticated technology in our manufacturing unit. This compact pump consumes low power and can work for longer, which are the reasons it is highly demanded in the market. The industrial submersible pump operates efficiently and incurs low operational cost and maintenance cost.

Special Features &Advantages:

• The Motors are squirrel cage type completely enclosed, wet type induction motor ideal for Single Phase, 230V / 3 Phase, 415 volts, 50 c/s a.c. supply, filled with drinking water
• Dual seals and sand guard are provided to protect and prevent contamination of outside borewell water
• Stainless steel pipe is used for making Stator
• Varnish under vacuum is added to Stator & Rotors and baked-under controlled temperature to prevent rusting in water
• SS sleeves are shrink fitted at bearing locations on rotor shaft and ground to closer tolerance for smooth operations
• Winding wire is manufactured using water resistance P.V.C. Coated / Poly coated copper wire
• Vibration free operation is confirmed with the dynamically balanced Rotor assembly
• Rotor bars are of copper of electrolytic grade
• All bush bearings are water lubricated
• Thrust bearing assembly is fitted with tilted pads that rest on Stainless Steel Balls and supported by locating pin to take the higher axial load
• The revolving thrust plate is made from Stainless Steel & fitted securely fixed to the Stainless Steel Plate
• Rubber diaphragm is fitted at the motor's base to equalise pressure due to variation in temperature during operation
• Rubber gromets protect the lead cables
• The motor is fabricated as per IS 9283 / 1995

The Pump

• It is a vertical multistage centrifugal pump with mixed flow/ radial flow type SS impeller
• The dynamically balanced impellers have closed grained graded CI stationary parts with smooth profiles with no determental defects
• The bearing bush is water lubricated type
• Stainless steel is used to manufacture the Pump shaft Sleeves & Coupling
• Impeller & sleeves are fixed safely on Stainless Steel Shaft with Stainless Steel Key
• Bolting is done to lock the bowls to get high Concentric accuracy and reliability
• A streamlined non return valve is there to avoid reverse rotation of pump assembly when it is switched off
• Stainless Steel Suction strainer is offered to prevent entry of suspended material in water
• Cable guards all along the pump body protect the cable from being wearing out during installation
• The pump is manufactured in line with the IS: 8034 / 2002.

Application: -

• Public Utilities
• Mining & Construction Sites
• Service Water Supply
• Fire Fighting Services
• Process & Cooling Water Circulation
• Booster Application
• Agriculture
• Tubewell Irrigation
• Openwell Irrigation
• Drip Irrigation / Sprinkler Irrigation
• River / Canal
• Raw & Treated Water Services
• Ornamental Like Fountains.

Mono Set Pumps: -

Features

• As the pump and motor makes a single unit, there is no requirement alignment or coupling
• The wet type, water lubricated and water cooled motor can be availed for 3 phase 415V and single phase 230V A.C. Supply
• The motor is wound with Poly coated / PVC coated wire
• Stators and Rotors are produced using quality silicon stamping to reduce the losses and increase the motor's efficiency
• The rotors and stators with varnish added into their under vacuum are further baked under controlled temperature to achieve hard finish
• All rotating parts, such as rotors and impellers are dynamically balanced
• This pump can withstand variations in supply voltage
• It completely submerges in the water and requires no priming
• No pump house is needed and initial investment is low
• High overall efficiency of this pump results in lower electricity bills
• Pollution free as it causes no contamination of oil/grease
• All C.I. Parts in line with S - 210 FG 200.

Applications:

• Domestic water supply
• To lift water from underground tank to overhead tank in residential societies and high rise corporate buildings
• Agriculture: For open well application, where water level is not steady
• Industries: For water circulating system, storage tank filling, Hospitals, Garage, Gardens, etc.
