Product Description

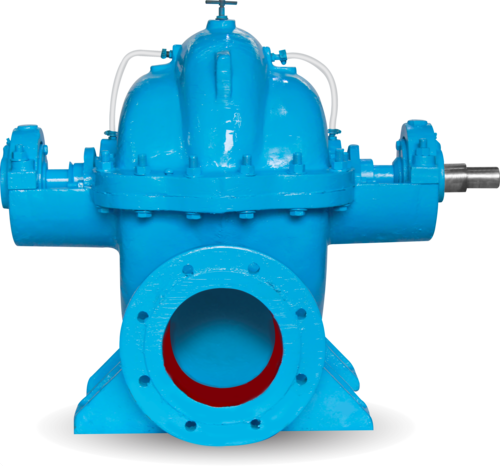

Ours is an ISO 9001:2000 certified company that manufactures and suppliesHorizontal Split Case Submersible Pump. A team of engineers use advanced machines and quality material for the production of this pump, which can efficiently pump liquid.
Features:
- This pump has heavy-duty construction
- It is highly durable
- It operates without any hassle
- It requires minimal maintenance
Applications
- Paper mills
- Pharmaceuticals
- Port & docks
- Sugar mills
- Oil mills
- Air conditioning
- Building services
- Circulating water system
- Fire fighting
- Water supply scheme
- Water / effluent treatment plants
- Steel & cement plants
Technical Specification
|
Pump | Discharge Sizes | 62 To 500 Mm |
| Flow Rate Capacity | Up To 5000 M3/Hr. |
| Head Capacity | Up To 150 Mtr. |
| Description | Material | No |
| Companion Flange | M.S Asper IS: 1538 NB16.5 | 1 |
| Sealing | Graphite Gland Packing | 1 |
| Base Frame | M.S Fabricated (150mm chanel) | 1 |
| Impeller | S.S 316 | 1 |
| Casing / Impeller wearing | S.S 316 | 2 |
| Shaft Sleeve nuts | S.S 410 | 4 |
| Antifrication Bearing | C.S | 2 |
| Shaft Sleeve | S.S 410 ASTM A-479-11(AISI -410) | 2 |
| Lantern ring | C.I FG 260 ASPER IS 210 | 2 |
| Pump casing half | C.I FG 260 ASPER IS 210 | 1 |
| Bearing Bracket | C.I FG 260 ASPER IS 210 | 2 |
| Pump Shaft | S.S 410 ASTM A-479-11(AISI -410) | 1 |
| B.B.C | C.I FG 260 ASPER IS 210 | 2 |
| Bearing Housing | C.I FG 260 ASPER IS 210 | 2 |
| Padastal | C.I FG 260 ASPER IS 210 | 2 |
| Pump Gland | Gland Packing Graphite | 2 |
| Stuffing box | Graphite | 6+6 |
| Cooling pipe | PVC | 2 |
| Pump Casing Half | C.I FG 260 ASPER IS 210 | 1 |
