Dewatering Submersible Pump

Product Description

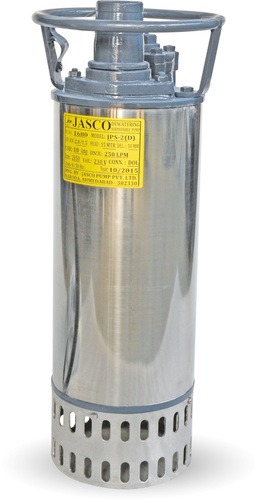

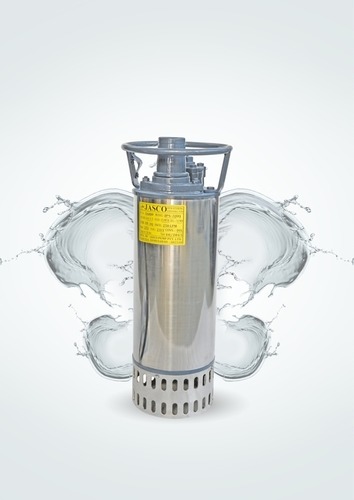

Dewatering Submersible Pump

Jasco Dewatering submersible pump can be used to operate continuously to draw water from the lowest level. This compact and efficient pump with a computer aided design delivers optimum output at minimum power input. It requires no pump house. The wetted parts of the pump are specially treated to make them resistant to corrosion.

In order to drive the Jasco Dewatering submersible pump, 'F' class insulated / P.V.C. coated oil filled motor ideal for 3 phase, 415 V, 50Hz A.C. supply is used. The water flows between motor body and jacket in order to keep the winding cool. All stationary parts are of graded C.I. casting. Stainless steel is used for motor body and jacket, and protective sleeve. Impeller material can be of customer’s choice between CI, stainless steel and bronze. Motor will have either P.V.C. coated wire winding or 'F’class winding. The motor is connected with a heavy duty P.V.C.double sheathed round cable.

On the extended motor shaft, there is a mixed flow impeller. The mechanical seals protect the motor from the raw water. Heavy duty thermal varnish is added to the stator and rotor under vacuum. Impeller and Rotor assembly is dynamically balanced to operate without any vibration and noise.

Customers can opt forThirmister control sensor.

Applications

• Industrial waste water
• Storm water
• Dewatering of mines and collieries

Technical Specifications
