Product Description

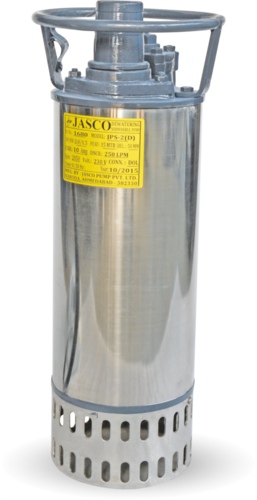

Jasco Portable Dewatering pump is a compact, light weight pump with a computer aided design. This compact and efficient pump has a suction at the bottom, so that it can draw water even from the lowest level. This pump can be used for operating continuously. All its parts are treated to enhance the corrosion resistance feature. The centre delivery at top allows for vibration free operation. The motor with a stainless steel outside jacket ensures continuous waterflow on motor body to keep winding cool. Stainless steel material is used for motor shaft, body and impeller. The lower and upper end of the motor shaft have antifriction heavy duty ball bearings. All stationary parts are graded C.I. casting.
A ‘F’ class dry motor with IP 68 protection drives the Jasco Portable Dewatering pump, which can be availed in either single phase or three phase version.There is a semi open, radial impeller mounted on extended motor shaft; and the mechanical seals protect the motor winding from pumping liquid. Customers can opt for additional thermister control, float arrangement, cutter arrangement and agitator.
Applications
- Cleaning of manhole
- Construction site & basement
- Handling Industrial wastewater
- Kitchen waste in Hotels
- Drainage of Reservoirs, Ditches & Trenches
Technical Specifications
| Head | up to 35m. |
| Capacity | up to 150 m3/Hr |
| HP | up to 2 Hp (SP) | up to 20 Hp (TP) |
| Solid size | up to 20 mm. |
| Speed | 1450/2900 rpm. |
| Name of Parts | Material | Qty |
| Cable | CU + PVC | 15 Mtr |
| Handle | M.S | 1 |
| CAP | C.I.F G260 | 1 |
| Rubber Gromet | Rubber | 1+1 |
| Cable Housing | C. I . F 260 | 1 |
| Oil | Power Oil | 3 Ltr |
| Impller Lock nut | S.S | 1 |
| Strainer | S.S | 1 |
| Spiral Plate | C.I.F. G 260 | 1 |
| Impller | CF-8M | 1 |
| Oil Chamber cover | C.I.F 260 | 1 |
| Mechhanical Seal | TC. TC SIC / SIC | 1+1 |
| Oil | 20W40 | 1 Ltr |
| Oil Chamber | C.I.F 260 | 1 |
| Ball Bearing (D/E) | C.S | 1 |
| Pump Shaft | S.S 410 | 1 |
| Rotor Dia Cast | CR NO + Allu | 1 Set |
| Stator Stamping | CR NO | 1 Set |
| Winding wire coil | S. E Copper | 1 Set |
| Stator body | S.S | 1 |
| Ball Bearing (D/E) | C.S | 1 |
| Stud | S.S | 4 |
| Outer Jacket | S.S | 1 |
| Top Cover | C. I .F .G 220 | 1 |
| Hose Flange | C. I .F .G 260 | 1 |
| Hose Collar | C. I .F .G 260 | 1 |
