Portable Submersible Pumps

Product Description

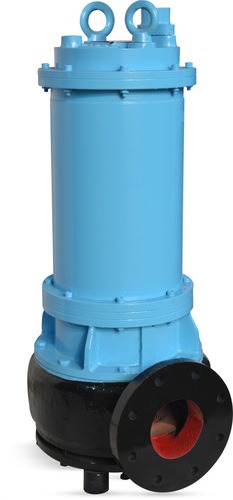

Jasco Portable submersible pump is an efficient, compact in size, sturdily constructed pump that can be used for continuous operation. This light in weight, portable pump can draw water from the lowest level give to the suction at the bottom. All wetted parts undergo a special anti corrosive process to enhance their life.

Jasco Portable submersible pump driven by F class oil filled motor with IP 68 protection can be availed in single phase or three phase version. On the extended motor shaft, a semi-open redial impeller is mounted. The two mechanical seals of right material and size fitted in the oil chamber protects the motor winding from pumping liquid. The optional features are float arrangement, thermistor control, cutter arrangement & agitator.

Motor body, shaft and impeller are made from stainless steel; while all stationary parts are graded C.I. casting. The cable is multicore cable with double sheathing and the winding is ‘F’ class insulated. The upper and lower end of the motor shaft have antifriction heavy duty ball bearings. Heavy duty thermal varnish is added into stator and rotor. Impeller & rotor operates without any noise and vibration, all because of their dynamic balancing.

Applications

• Construction site & basement
• Kitchen waste in Hotels
• Handling Industrial wastewater
• Cleaning of manhole
• Drainage of Reservoirs, Ditches & Trenches

Technical Specifications
